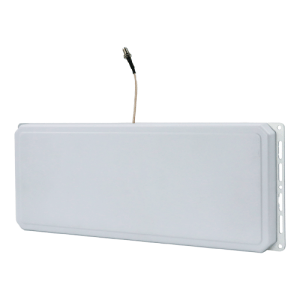

UHF 902-928 MHz Threshold RFID Antenna

Product ID: 326010

Overview –

Download Our PDF Product Document
Download Our PDF Product Document

Initially designed for boundary/threshold crossing applications, the antenna has a very wide beam width to maximize zone coverage. The antenna’s wide beam width provides extensive coverage across a boundary edge. This antenna provides a consistent and continuous read zone when linearly distributed head-to-tail. At 46 × 9 × 2 cm, the antenna’s planar form factor fits readily onto fencing or other borders. By lining the antennas up along the short edge, one continuous read zone may be established along a boundary line.

Key Features

  • Strong far-field performance
  • Wide beam width to maimize zone coverage
  • Low profile form factor
  • Optimized performance for operation from 902 to 928 MHz

Technical Specifications

Frequency Range 902 MHz to 928 MHz
Far-field Gain 5.0 dBi
HPBW (x-z plane) 60°±3°, 3 dB beam width
HPBW (y-z plane) 120°±3°, 3 dB beam width
Pattern Variation (x-y plane) 10 dBi, between max and min
Polarization Linear, parallel to short axis
VSWR 2:1
Input Impedance 50 Ω
Input Power 30 dBm, 22 dBm absolute max
ESD 2 KV, Human Body Model
IP Rating IP54, indoor and outdoor use
Temperature -25 °C to 55 °C, indoor and outdoor
Humidity 5-95%, performance will be severely degraded if antenna is subjected to any standing water
RoHS N/A, designed to meet RoHS, not certified RoHS
Weight 710 g
Connector BNC plug, antenna comes standard with BNC jack to BNC jack converter
Cable length 305 mm, +/- 12 mm
Radome ABS
Enclosure Bent sheet aluminum, clear finish
Dimensions 457 mm × 89 mm × 19 mm
