UHF 860-960 MHz Livestock RFID Tag - EPC Gen 2 ISO18000 6C
UHF 860-960 MHz Livestock RFID Tag - EPC Gen 2 ISO18000 6C

UHF 860-960 MHz Livestock RFID Tag

Product ID: 116034

Overview

Download Our PDF Product Document
Download Our PDF Product Document

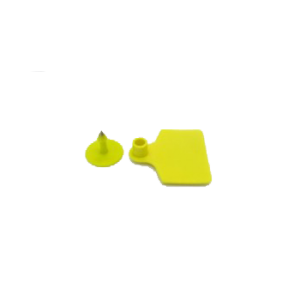

This passive Gen2 UHF RFID tag is specially designed for tracking livestock, particularly Animal (or other bovines: buffalo, oxen), and operates in 860-960MHz Gen 2 Class 1 frequency range. This RFID Animal ear tag enables the tracking and monitoring of each cow’s feeding, location, vaccination and health history. The tag’s EPC compliance enables excellent performance in applications that demand high anti-collision rates and its IP67 rating ensures that it can withstand harsh environments.

GAO’s 860-960MHz RFID Animal ear tag shows robust performance and provides optimum read range over the entire UHF bandwidth and operates reliably in dense reader environments. The RFID Animal ear tag also provides a unique custom command set, which includes Electronic Article Surveillance (EAS) for increased security, Read Protection that prevents unauthorized chip memory access, and Calibrate, which facilitates the best possible communication between the tags and the RFID readers.

Applications –

Well suited for tracking Animal for foods, locations, vaccinations and health histories, etc.

Key Features

  • EPC C1 Gen2 (ISO/IEC 18000–6C) compliant
  • Operating frequencies: 860-960 MHz
  • Read/Write
  • Fast read rates
  • High anti-collision tolerance
  • 32-bit access password, 32bit kill password
  • IP67 enclosure — Dust & Water Proof
  • Mode performance
  • Electronic Article
  • Surveillance (EAS)
  • Suitable for large sized livestock animals such as Animal, namely cows

Technical Specifications

Operation Frequency 860 MHz to 960 MHz
RF Air Protocol ISO 18000–6C
Functionality Read/Write
Read distance up to 3 m (9.84ft) (reader dependent)
Data retention up to 10 years (<55 ℃/131 ºF)
Fast data rate forward link 40–640 kbits/s
return link 40–640 kbits/s
Anti-collision multiple identification
Security 32 bit kill command
Case material TPU
Substrate PET
Antenna Aluminum/Copper
Dimensions 50 mm x 30 mm (1.97 in. x 1.18 in.)
Operating temperature -10 ℃ to 50 ℃ (14 ºF to 122 ºF)
