Description
Overview

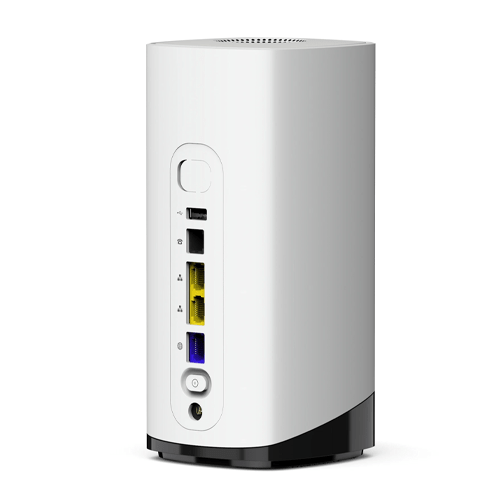

GAOTek’s Advanced 5G CPE Modem with Qualcomm Snapdragon X55 and Wi-Fi 6 is designed to meet the demands of modern mobile connectivity, offering ultra-fast speeds that surpass expectations. Built on a cutting-edge embedded platform, this 5G indoor CPE supports NSA and SA dual modes, making it compatible with all global network types. With plug-and-play convenience, users can enjoy seamless broadband connections for VR, AR, and 4K/8K streaming. Featuring 802.11 ax (Wi-Fi 6) technology, it provides broader wireless coverage, enhanced bandwidth, improved security, better network efficiency, and longer battery life, redefining connectivity for homes and businesses alike.
Technical Specifications
| Main Chipset | Qualcomm Snapdragon X55 and MT 7621 AT |
| Memory | 16 MB Flash and 256 MB DDR 3 |
| 5G Standard | 3 GPP Release 15 NSA, SA operation, Sub-6 GHz |
| 5G Network Mode | NSA, SA |
| Protocol | IEEE 802.11 ax |
| Interface | 1 x 1 Gbps WAN, 2 x LAN 1Gbps, 1 x SIM Slot (Nano-SIM), Reset button, MESH+ Button, MESH+ LED Switch |
| LED Indicator | MESH+ Working Status (breathing light), 5G Status, 4G Status, Wi-Fi Status, Power Status |
| DC Power Supply | 12 V, 2 A |
| Max Power Consumption | 20 W |
| 5G Cellular | 5G Baseband Qualcomm Snapdragon X55 Modem-RF System 5G Network Modes SA (standalone), NSA (non-standalone) 5G NSA Bands n 1, n 2, n 3, n 5, n 7, n 8, n 12, n 20, n 25, n 28, n 38, n 40, n 41, n 48, n 66, n 71, n 77, n 78, n 79 5G SA Bands n 1, n 2, n 3, n 5, n 7, n 8, n 12, n 20, n 25, n 28, n 38, n 40, n 41, n 48, n 66, n 71, n 77, n 78, n 79 5G Standards 3 GPP Release 15 5G SA Transmission Speed 2.1 Gbps, 900 Mbps (up to ISPs) 5G NSA Transmission Speed 2.5 Gbps, 650 Mbps (up to ISPs) |
| 4G Cellular | LTE Category Down Cat 16, UP Cat 18, LTE-FDDB 1, B 2, B 3, B 4, B 5, B 7, B 8, B 12, B 13, B 14, B 17, B 18, B 19, B 20, B 25, B 26, B 28, B 29, B 30, B 32, B 66, B 71 LTE-TDD B 34, B 38, B 39, B 40, B 41, B 42, B 43, B 48 LTE Down 4 × 4 MIMO B 1, B 2, B 3, B 4, B 7, B 25, B 30, B 32, B 34, B 38, B 39, B 40, B 41, B 42, B 43, B 48, B 66 WCDMA B 1, B 2, B 3, B 4, B 5, B 8, B 19 LTE Down 1.0 Gbps, UP 200 Mbps |
| Wi-Fi 6 (802.11ax) | Working Radio #1 600 Mbps @ 2.4 GHz, #2: 1200 Mbps @ 5.1 GHz to 5.8 GHz Coding Technology 1024-QAM, OFDMA Peak Connections >100+ Clients Wi-Fi Standard Conformance Wi-Fi 6 and 802.11 ac, 802.11 n backward Antenna external 4 pcs high performance antennas with 4 pcs FEM component |
| Data Switching | Mobile 4G, 5G Connection (Support APN) Giga Ethernet Connection MESH MESH+ hybrid 2.4 G, 5 GHz Wi-Fi Advanced Firewall MAC Filter Wi-Fi Security VPN Passthrough and VPN Client (L2TP PPTP) 9) IP V4, IP V6 WEB, APP Management Firmware upgrade |
| Dimension | 8.87 in x 4.33 in x 4.33 in (22 cm x 11 cm x 11cm) |
| Weight | 1.54 lb (0.7 kg) |
