433-mhz-active-rfid-tags

Active 433 MHz RFID tags are the standard for the International Telecommunication Union (ITU) Region 1 comprising of Europe, Africa, Middle East, the Persian Gulf, and Russia.

These Active RFID tags are battery powered, have a long range (20 to 100 meters), and can be read quickly. They can be woken when in range with an RFID reader to broadcast their unique IDs (conventional) or function as beacons to continuously broadcast a signal (used in real time location systems.

Technology

GAO RFID presents a collection of Active 433 MHz RFID Tags with diverse protocols design to have a long range 65’ to 328’ (20 to 100 meters) and real time reading. This technology is ideal for tracking large and high valuable assets typically found in auto dealerships, manufacturing, mining and construction. These devices that work under the 433 MHz frequencies are the standard for the International Telecommunications Union (ITU) Region 1 that includes Europe, Africa, Middle East, the Persian Gulf, and Russia. Most of the Active 433MHz RFID tags have ATEX Zone 0, ICEPEX and intrinsically safe certification. Moreover, most of the tags compile with different standards such as EN 301 489 – 3: 2002 V1.4.1 ; EN 300 220 – 2007 : V2.1.2 ; CE Mark and RoHS Certified. Additionally, these tags have key features that ensure superior anti collision technology, low power consumption for long battery life and ultra long-range transmitter. Tags of this kind withstand harsh environments and temperatures and are made of different material such as Nylon IP64 and ABS.

Applications

The Active 433 MHz RFID Tags enable different industries to track large and high valuable assets across their business. These tags are often used in the auto dealerships, manufacturing, mining, and construction industries. Some of the particular applications for these devices include personnel tracking, use on metal, asset tracking, personnel management, monitoring of items temperature and location, indoor and outdoor use. Other applications of the active 433 MHz tags include vehicle access and car parking, for gated communities/ condominiums, offices, cold storage areas, pharmaceutical storage and hospitals/laboratories and logistic/ cargo warehouses.

Showing all 21 results

  • Sort:

ID: 124068

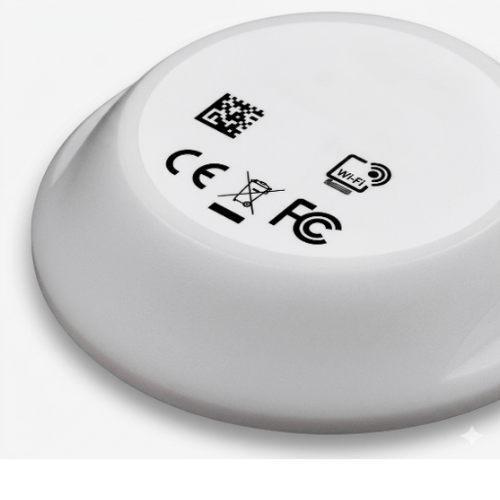

This Active RFID Tag is a coin-sized tag that is IP68 rated for waterproof applications and has a high read range of up to 262 feet (80 metres).

ID: 124014

This 433 MHz active RFID key fob tag operates in two modes including sleep mode and wake mode and it is intended for indoor use for applications such as personnel tracking.

ID: 124070

This 433 MHz Slim ID Active Tag is designed with an adhesive, tamper-proof backing and has a long read range of up to 196 feet (60 metres).

ID: 124071

This 433 MHz Thinline IR Active RFID Tag is a compact and thin (5mm) RFID tag with a reading range oof up to 262 feet (80 metres).

ID: 124081

This 433 MHz Active IR RFID Tag has an ultra long read range of 492 feet (150 metres) and is also available in an IP65 rated waterproof version.

ID: 124078

This Active RFID Waterproof Temperature Sensor has a high receiving range and is IP65 rated, enabling the tagging and monitoring of item temperature and location.

ID: 124017-HZ

This UHF 433 MHz active RFID asset hazard tag is certified to ATEX Zone 0 and ICEPEX standards and can be configured to hold standard 26-bit Wiegand numbering.

ID: 124018

The 433 MHz active indoor asset RFID tag can incorporate a motion sensor providing immediate alarms on movement and offers different user-configurable rates for its status transmissions.

ID: 124017

The industrial active RFID asset tag is ideally suited for heavy duty or outdoor assets or vehicle tracking and monitoring applications.

ID: 124008

This 433 MHz compact RFID active tag features a light weight, low power consumption, and collision avoidance algorithm function with an ultra long-range transmitter.

ID: 124009

This 433 MHz micro wrist strap RFID tag has a unique omni-directional antenna design, works well with both metallic and non metallic asset, and has an anti-tamper feature.

ID: 124012

This active RFID personnel tag is intended for use in all personnel security and access applications such as dynamic mustering and health and safety compliance, or on non-metal assets.

ID: 124007

This 433 MHz active rugged wrist strap RFID tag allows for a wide range of user-supplied wrist straps to be used to attach the tag to the wearer's wrist and is splash proof.

ID: 124017-Temp

This asset temperature tag can be used to measure temperature in an indoor or outdoor environment and can be deployed equally well on metallic and non metallic assets.

ID: 124012-HZ

This 433 MHz active RFID personnel hazard tag is ATEX Zone 0, ICEPEX and intrinsically safe certified and is generally used for security & safety applications.

ID: 124076

This Wireless Analog Input RFID Sensor has a high range of up to 492 feet (150 metres) and is IP65 rated to work in the harshest environments.

ID: 124080

ID: 124073

This Wireless RFID Magnetic Sensor has a high receiving range and is IP68 rated to enable the detection of any loss of magnetic contact.

ID: 124072

This Wireless RFID Motion Sensor tag is used as both an internal motion sensor and a wireless sensor to secure outdoor assets.

ID: 124074

This Wireless RFID Relative Humidity Sensor monitors and tracks the relative humidity of tagged items from up to 262 feet (80 metres) away.

ID: 124075

This RFID Temperature Sensor uses the 433 MHz frequency and is a compact long range RFID temperature sensor that is IP68 rated for use in wet locations.
