Description

Overview

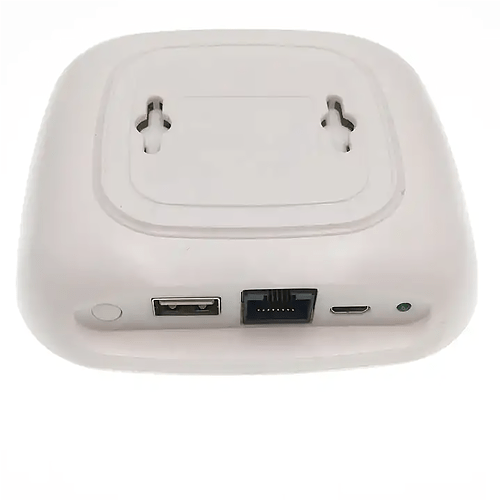

GAOTek’s Bluetooth 5.0 BLE Beacon Gateway with WiFi Connectivity supports the Bluetooth 5.0 BLE specification and follows the GATT protocol, ensuring compatibility with other 5.0 BLE devices. When the gateway searches for nearby BLE devices, it uploads their Bluetooth address, device name, signal strength, and other relevant information to a PC in the LAN network via TCP/IP. The gateway can connect using either RJ45 or Wi-Fi to upload data to the PC. Additionally, it can interface with Jinou Beacons, allowing you to modify beacon parameters such as device name, UUID, and Major/Minor values.

Features

• Complies with GATT specification of 5.0 BLE, ensuring compatibility with other BLE devices

• Monitors movement of neighboring BLE devices

• Supports Wi-Fi, can connect to a router via RJ45 port or Wi-Fi

• Data caching function to prevent data loss during uploads

• Certified with FCC, CE, RoHS, and other standards

• Bluetooth and Wi-Fi use separate frequencies, circuits, and antennas with minimal interference

• Modes: Automatic power-saving, BLE mode, and high-speed working mode

• Bluetooth protocols supported: LL, MP, L2CAP, ATT, GATT, GAP

• Wi-Fi supports IEEE 802.11b/g/n protocol

• Network protocols: TCP/IP, DHCP, ARP, RARP, TCP, UDP

Technical Specification
