Description
Overview

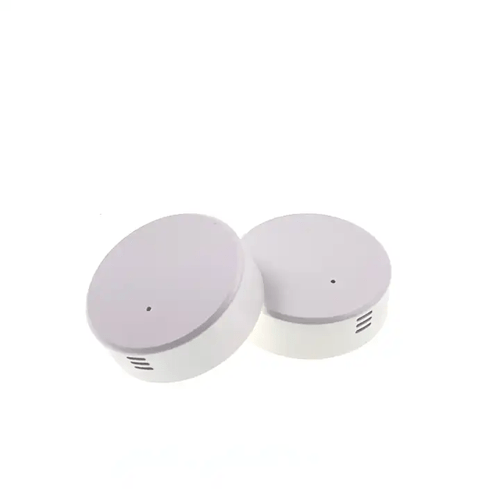

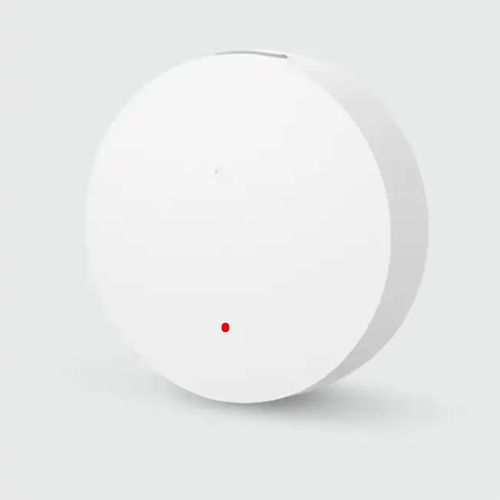

GAOTek temperature and humidity sensor beacon is a new generation sensor technology which is based on Beacon. This product can send collected data to phone or gateway via Beacon broadcasting.
Technical Specifications
| Bluetooth version | BLE 5.0 |
| Searching distance | 164 ft (50 m) |
| Connecting distance | 32.8 ft to 98.4 ft (10 m to 30 m) |
| Power supply | CR 2032 button cell |
| Chipset | nRf52810 |
| Working current | About 235 ua |
| Operation frequency | 2400 MHz to 2483 MHz |
| Frequency error | +/- 20 KHz |
| Standby current | 46 ua |
| Output power | 0 dBm |
| Receiving sensitivity | -93 dBm |
| Antenna | 50 ohm |
| Operation voltage | 2 V to 6 V DC |
| Security processor | AES 128 bit |
| Temperature measure range | -40 °F to 185 °F (-40 °C to 85 °C) |
| Size | 1.6 in x 0.6 in (40 mm x 14 mm) |
