Description
Overview

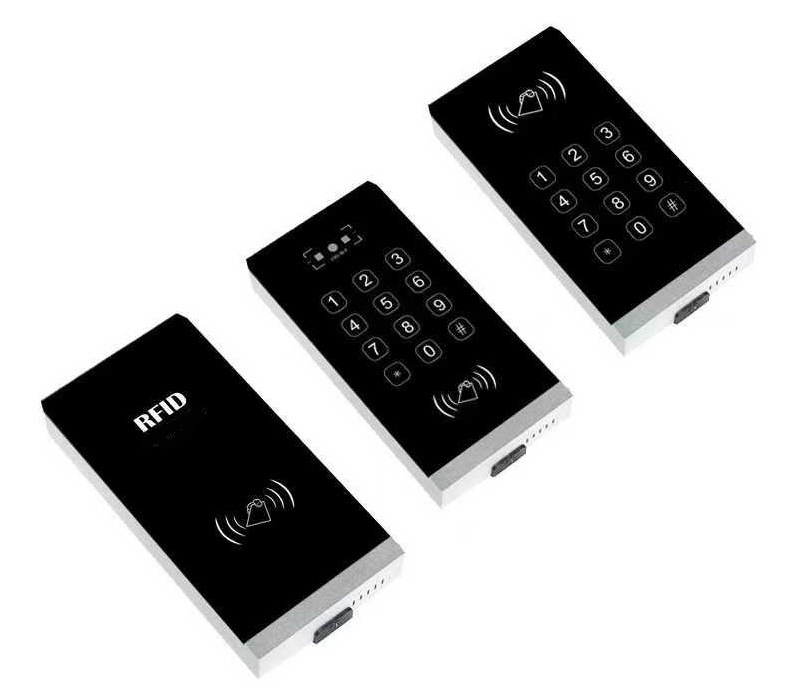

GAORFID Cloud-Based PoE & Wi-Fi Access Control RFID Reader is a high-performance security device designed for real-time access control. With multiple connectivity options including PoE, Wi-Fi, and optional 4G/LTE, it ensures seamless integration into various security systems. The built-in relay and QR scanner enhance functionality, while offline storage capabilities ensure reliability in remote locations. Its rugged aluminum and glass construction with an IP65 rating makes it ideal for harsh environments.
Features
- Cloud-based system for real-time monitoring and remote management
- Ethernet, PoE, Wi-Fi, and optional 4G/LTE connectivity for flexible integration
- Built-in relay for seamless connection with door locks and alarms
- Supports ISO14443A, NFC, and 125 kHz RFID protocols for broad compatibility
- Offline event storage with a capacity of up to 10,000 records
- IP65-rated aluminum and glass construction for durability in harsh environments
- Firmware upgradeable via data cable (local) or OTA (remote)
Applications
- Access control for schools, universities, and hospitals
- Secure parking lot management with automatic door control
- High-security monitoring for controlled areas in commercial spaces
- Smart home integration for automated access control
- Ideal for high-traffic environments requiring real-time access logging
Technical Specifications
| Parameter | Details |
| Protocol | ISO14443A, NFC, 125 kHz |
| Frequency | 13.56 MHz or 125 kHz |
| Connectivity | Ethernet, PoE, Wi-Fi, Optional 4G/LTE |
| Power Supply | DC 9 V to 28 V or via PoE |
| Mounting Style | Desktop or Wall Mount |
| Dry Contact Relay | Built-in |
| QR Scan | Built-in |
| Network Protocols | TCP/IP, HTTP, HTTPS |
| Card Storage | 20,000 cards |
| Offline Event Storage | 10,000 events |
| Signal Input | One external door button input |
| Upgrade Method | Firmware via data cable (local) or OTA (remote) |
| Keypad/Password | Supports 500 password groups |
| Material | Aluminum and Glass |
| QR Reading Distance | 3.94 in (10 cm) |
| RFID Reading Distance | 0.39 in to 1.97 in (1 cm to 5 cm), RFID tag dependent |
| Temperature | -22 °F to 167 °F (-30 °C to 75 °C) |
| Dimensions | 6.18 in x 3.11 in x 0.98 in (15.7 cm x 7.9 cm x 2.5 cm) |
| Weight | 1.21 lb (550 g) |
