Description
Overview

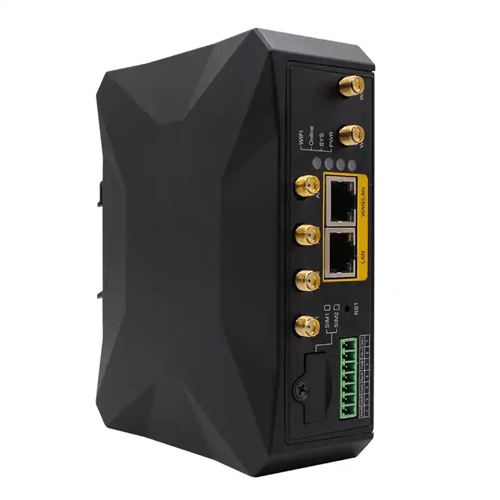

GAOTek’s Gigabit Cellular Modem with 5G, Dual-SIM, and Wi-Fi 802.11ac is a high-performance wireless communication router designed for Internet of Things (IoT) applications. Powered by an industrial-grade 32-bit communication processor and wireless module, it delivers reliable long-distance data transmission over 3G, 4G, and 5G cellular networks. Embedded with a real-time operating system, this modem ensures efficient and seamless operation. Its durable IP30 metal housing and wide operating temperature range make it ideal for industrial environments. With dual-SIM support and Wi-Fi 802.11ac capability, it provides versatile and robust connectivity for demanding industrial and commercial applications.
Technical Specifications
| WAN, LAN Interface | 1 x Gigabit RJ 45 ethernet port, adaptive MDI, MDIX, built-in 15 KV ESD |
| LAN Interface | 1 x Gigabit RJ 45 ethernet port, adaptive MDI, MDIX, built-in 15 KV ESD |
| Serial | 1 x RS 232, RS 485 serial interface with built-in 15 KV ESD Data bits 5 bits, 6 bits, 7 bits, 8 bits Stop bits 1 bits, 1.5 bits (optional), 2 bits Error detection none, even parity, odd parity, SPACE (optional) and MARK (optional) Serial Port Rate 2400 bits to 115200 bits |
| LED Indicators | “WIFI”, “Online”, “PWR”, “SYS” |
| CAN | 1 x CAN 2.0 |
| Antenna Interface | Cellular 4 x Standard SMA female antenna interface, characteristic impedance 50 Ω WIFI 2 x Standard SMA male antenna interface, characteristic impedance 50 Ω |
| SIM, UIM Slot | Standard drawer type user card interface, support 1.8 V, 3 V SIM, UIM card, built-in 15 KV ESD, support dual-SIM card |
| Power Interface | Terminal power socket |
| Reset Button | Can reset router’s configuration to default factory setting by this button |
| Module | Industrial grade wireless module |
| Standard and Band | 5G N R n 1, n 3, n 5, n 7, n 8, n 20, n 28, n 38, n 41, n 77, n 78, n 79 LTE B 1, B 2, B 3, B 5, B 7, B 8, B 20, B 28, B 34, B 38, B 39, B 40, B 41, B 42, B 43 WCDMA B 1, B 2, B 5, B 8 Optional 5G NR n 2, n 5, n 7, n 12, n 25, n 41, n 66, n 71, n 78 LTE B 2, B 4, B 5, B 7, B 12, B 13, B 14, B 17, B 25, B 26, B 29, B 30, B 66, B 71, B 41, B 42, B 48 WCDMA B 1, B 2, B 5, B 8 |
| Bandwidth | 5G NR DL 3.4 Gbps, UL 350 Mbps LTE Cat20 DL 2.0 Gbps, UL 150 Mbps HSPA+ DL 42 Mbps, UL 5.76 Mbps |
| TX Power | <23 dBm |
| RX Sensitivity | <-97 dBm |
| Frequency | IEEE 802.11 b, g, n, 2.4 G, AP mode, Station mode (option) IEEE 802.11 ac, 5.8 G, AP mode, Station mode (option) |
| Bandwidth | IEEE 802.11 b, g 54 Mbps IEEE 802.11 n 300 Mbps IEEE 802.11 ac 866 Mbps |
| Security | WEP, WPA, WPA 2, etc. |
| TX Power | 26 dBm (11 b), 21 dBm (11 ac, MCS 7, HT 40), 20 dBm (11 ac, MCS 9, HT 80) |
| RX Sensitivity | <-72 dBm @ 54 Mbps |
