Description
Overview

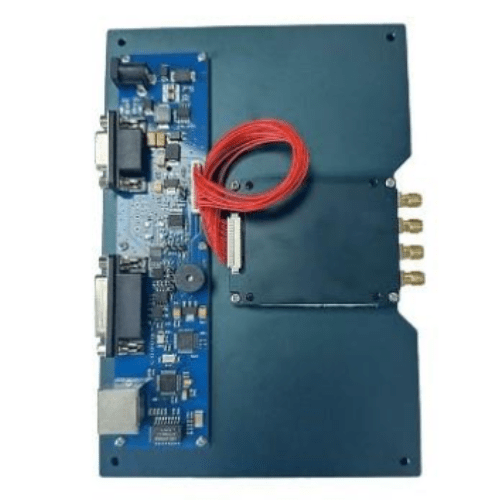

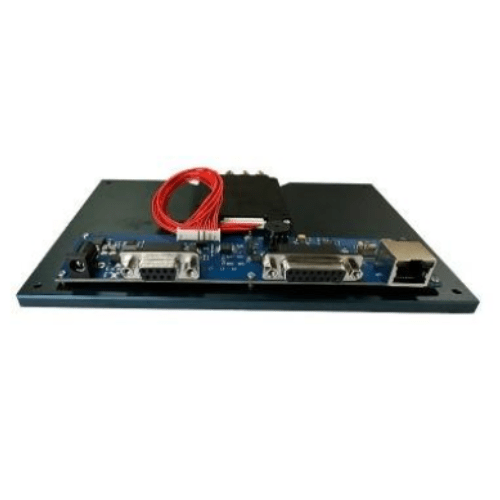

The reader is an embedded UHF Reader RFID Module. Based on proprietary efficient digital signal processing algorithm, it supports fast tag read /write operation with high identification rate. It can be widely applied in many RFID application systems such as logistics, access control, anti-counterfeit and industrial production process control system.
Feature
- Based on Impini E710 RF engine, fully support EFC C1 G2(ISO18000-6C) protocol
- 865-868MHz, 902~928MHz frequency band (frequency customization optional)
- FHSS or Fix Frequency transmission
- RF output power is adjustable from 0~33dbm with 1db step
- Reading range could be up to 10meter, depend on Antenna and tag
- Support RSSI
- Maximum inventory speed over 1000pcs/s@96EPC
- Support 4 SMA antenna port
- Low power dissipation with single +3.8V ~ +5V DC power supply
- 4 Port GPIO Interface (2 input, 2 output)
- Support RS232 (3.3V TTL level TTL level)
- High stability with natural cooling
- Support firmware on-the-site upgrading
Technical Specifications
Absolute Maximum rating
| Item | Symbol | Value | Unit |
| Power Supply | VCC | 5.5 | V |
| Operating Temp | TOPR | -20～+55 | ℃ |
| Storage Temp | TSTR | -40～+85 | ℃ |
Specification
| Item | Symbol | Min | TYP | MAX | Unit |
| Power Supply | VCC | 3.8 | 5 | 5.25 | V |
| Operating Temp | IC | 1500 | 2500 | mA | |
| Working Frequency | FREQ | 860 | 960 | MHz | |
| RF Output Power | PRF | 0 | 33 | dBm | |
| Receiver sensitivity | SR | -86 | dBm | ||
| Size | L×W×H | 67.5×51×7.75 | mm |
