Description
Overview

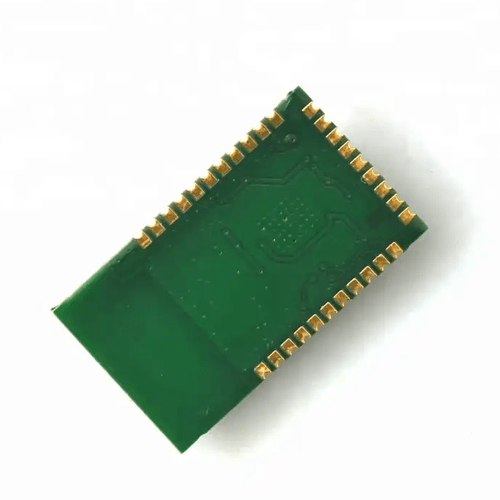

GAOTek wi-fi iot module is a highly integrated module featuring a low-power 802.11 wireless LAN (WLAN) network controller. This module combines an ARM-CM MCU, WLAN MAC, 1T1R WLAN baseband, and RF functions. With configurable GPIO for diverse applications, it also offers internal memories for complete Wi-Fi protocol support, including a 1MB ROM with high-speed, low-leakage memory that operates at up to 166MHz. The ROM library includes essential functions such as boot code, MCU initialization, UART driver, non-flash booting functions, peripheral libraries, and security function libraries, making it a versatile and efficient solution for wireless connectivity and control.
Features
- CMOS MAC, Baseband PHY, RF integrated
- 11/b/g/n compatible WLAN module
- Full 2.4GHz band coverage
- High-speed 150Mbps transmit and receive rates
Technical Specifications
| Main Chipset | RTL8710AF |
| WIFI/BT Interface | SPI / Uart / I2 C / PWM / GPIO |
| WIFI Standards | IEEE802.11 a / b / g / n |
| Data Rates | 150 Mbps |
| Certification | RoHS, REACH |
| RF Antenna | Internal Antenna |
| OS Supported | Android / Linux / Windows |
| Operating Frequency | 2.4 GHz |
| Operating Voltage | 3.3 V |
| Dimensions | 0.51 in x 0.48 in (12.9 mm x 12.19 mm) |
| RF Chains | 1T1R |
| Operating Temperature | 32 °F to 158 °F (0 °C to 70 °C) |
| Storage Temperature | -40 °F to 158 °F (-40 °C to 70 °C) |
