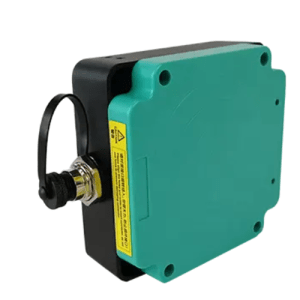

Description
Product Features
- ISO 15693 / ISO 14443A compatibility
- 56 MHz operating frequency
- PCB integrated antenna
- RJ45, RS232, RS485 communication interfaces
- ModbusTCP, ModbusRTU, TCP/UDP protocols
- Wi-Fi support (optional)
- LED indicator light and buzzer
- IP67-rated waterproof and rugged design
- Reliable firmware upgrade mechanism
- GPIO with 2-way input and output
- API development kit for C, C#, and Java
- Fast and accurate collection
- 360-degree free adjustment of RFID sensing surface
- High anti-interference
- Easily handle production line and logistics management
Product Applications
- Auto parts management
- Food processing and production management
- Logistics sorting line:
- Automobile manufacturing
- logistics management
- RFID application in photovoltaic manufacturing
- RFID intelligent sanitation management
Technical Specifications
| NFC Radio Frequency Chip | ZC100 |
| Air Protocol | ISO 15693 or ISO 14443A |
| Working Frequency | 13.56 MHz |
| Label RSSI | support |
| Antenna | PCB integrated antenna |
| Communication Interface | RJ45, RS232, RS485 |
| Protocol | ModbusTCP, ModbusRTU, TCP or UDP protocols |
| W I F I (Optional) | Support IEEE 802.11n/b/g |
| Heating Device (Optional) | Low temperature automatic heating (minus 5°) is optional (determined according to the project site environment) |
| Communication Rate | Serial port communication rate 9600 to 115200bps, RJ45 communication rate 10 or 100 Mbps |
| Working Status | LED indicator light, buzzer |
| Reliable Firmware Upgrades | Scalable upgrade mechanism |
| General Purpose Input/Output (Gpio) | 2- way input, 2- way output |
| Application Software Interface | Provide API development kit and C, C# and Java application routines |
| Power Supply | Working voltage DC 9 to 24 V |
| Power Consumption | Maximum power consumption 3 W, maximum starting current 1 A |
| Communication Harness | Industrial connection tail wire one for five |
| Humidity | 5 % to 95 %, non-condensing |
| Degree Of Protection | IEC IP67 |
| Storage Temperature | room temperature |
| Operating Temperature | -40 °F to +185 °F (- 4 0 ºC to + 85 ºC) |
| Reading Distance | 1 ISO15693: 4.33 in (11.0 cm) ISO 14443A: 2.36 in (6.0 cm) (depending on label) |
| Write Distance | ISO15693: 3.94 in (10.0 cm) ISO 14443A: 1.97 in (5.0 cm) (depending on label type) |
| Size | 3.74 in x 3.74 in x 1.57 inches (9.5 cm x 9.5 cm x 4.0 cm) |
| Weight | Approx. 2.43 lbs (1.1 kg) (whole set) |
