Description

Overview

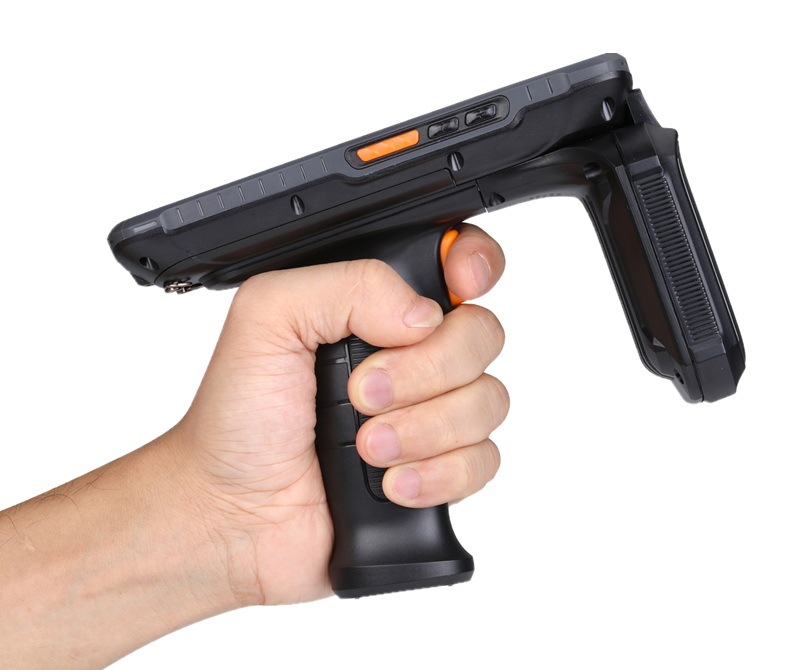

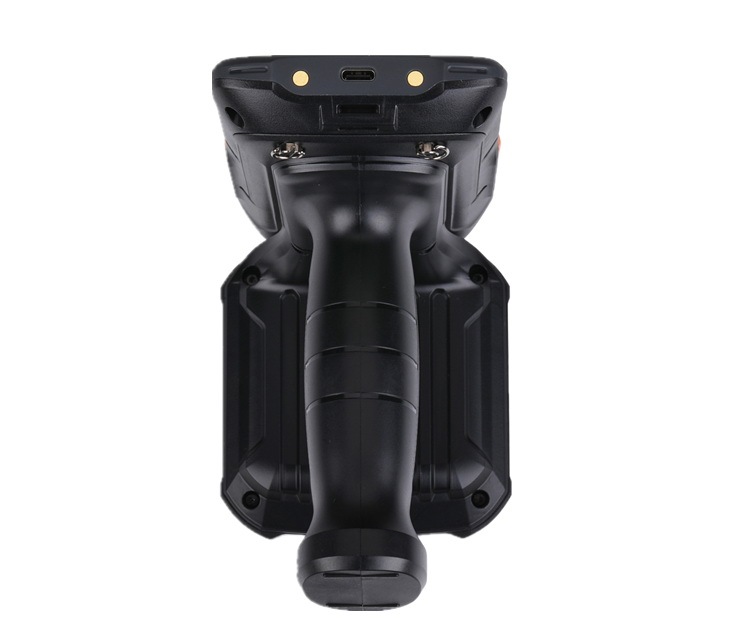

UHF Android Handheld RFID Reader 840 MHz to 960 MHz – GAORFID is an Android rugged mobile computer. It features powerful processor, 10000 mAh battery and superb UHF RFID capability. That it can read tags in bulk from long housing, fleet management

Technical Specifications

Frequency Worldwide 840 MHz to 960 MHz, EU 865 MHz to 868 MHz, US 902 MHz to 928 MHz
Protocol ISO/IEC 18000-6C and 6B, EPC Class1 Gen2
Material ABS Waterproof
Antenna Built-in 8 dBi Circular polarization antenna
Read and Write Range Read 3.2 ft to 19.6 ft (1 m to 6 m) adjustable, tag and environment dependent
Working Mode Read & write supported
Keyword RFID Handheld reader
Color Black (bottom shell black, front shell black)
Reading Distance 3.2 ft to 19.6 ft (1 m to 6 m)
Display Size 5.0 in (12.7 cm)
Display Resolution 1280 x 720
Touch Panel Multi-touch panel, Corning grade 3 glass toughened screen
Front Camera 5.0 MP
Rear Camera 13 MP Autofocus with flash
Speaker Built-in 8 Ω or 0.8 W waterproof horn x 1
Microphone Built-in Sensitivity: -42 dB, Output impedance 2.2 kΩ
Battery Type Removable polymer lithium-ion battery
Battery Capacity 3.7 V or 10000 mAh
Battery Life About 8 hrs (standby time > 300 h)
Antenna Parameter Spiral antenna (4 dBi)
Optical Resolution 5 mil (8.04 km)
Scanning Speed 50 times per s
Acquisition Speed Single frame image acquisition time ≤ 0.25 s
Fingerprint Module Capacitive USB press module
Image Resolution 508 dpi
Image Size 256 pi X 360 pi
Camera Front camera 5.0MP (optional), Rear camera 13MP Autofocus with flash
QR Code (Optional) Honeywell 6603, Zebra SE4710, CM60; Optical resolution: 5 mil; Scanning speed: 50 times per second; Supported code types: PDF417, MicroPDF417, Data Matrix, Data Matrix Inverse, Maxicode, QR Code, MicroQR, QR Inverse, Aztec, Aztec Inverse, Han Xin, Han Xin Inverse
RFID Function Low frequency: Support 125 k and 134.2 k, effective recognition distance 1.18 in to 1.97 in (30 mm to 50 mm);

High frequency: 13.56 MHz, support 14443A/B; 15693 agreement, effective recognition distance 3-5 cm;

UHF: CHN frequency: 920 MHz to 925 MHz, US frequency: 902 MHz to 928 MHz, EU frequency: 865 MHz to 868 MHz; Protocol standard: EPC C1 GEN2/ISO18000-6C; Antenna parameter: Spiral antenna (4 dBi); Card reading distance: According to different labels, the effective distance is 26.24 ft to 82 ft (8 m to 25 m)

Card Reading Distance According to different labels, the effective distance is 26.2 ft to 82.0 ft (8 m to 25 m)
Dimensions 7.0 in x 3.2 in x 0.6 in (17.8 cm × 8.3 cm x 1.7 cm)
Weight 20.4 oz (580 g)
