Description
Technical Specifications

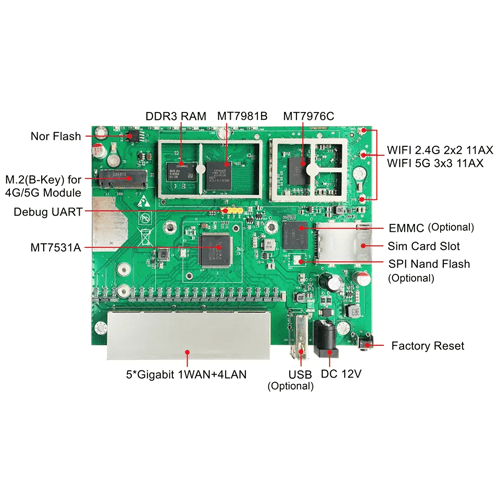

| Chipset | CPU: MTK MT7981 dual-core ARM, Cortex-A53 WIFI6: MT7976C 5 Giga-PORT Switch: MT7531A |
| System Memory | Default DDR3 256 Mbyte (Optional 512 Mbyte/1 Gbyte) |
| Nor Flash | Default 16 Mbyte (Optional for 8 Mbyte,32 Mbyte,64 Mbyte) |
| eMMC | Optional 8 Gbyte EMMC |
| NAND Flash | Optional 128 Mbyte,256 Mbyte SPI NAND Flash |
| Expansion | 1x 4 G, 5 G Module with a SIM card 1x USB TYPEA connector for power only |
| Wireless | MU-MIMO 802.11 a/b/g/n/a/ax Wi-Fi 6 2.4 GHz 2 T 2 R 576Mbps. B mode 23 dBm (Max) 5 GHz 3 T 3 R 2.4 Gbps, A mode 23 dBm (Max) |
| Wired Interface | 5x Gigabit 1 x WAN+4 x LAN |
| Reset Button | 1x Factory Restore Button (GPIO) |
| DC Power | 1x DC Jack Connector (Default 12 V, 1 A) |
| Power Consumption | 9 W(Max),12 V, 1 A without Expansion24 W(Max), 12 V, 2 A in full range |
| Software | MTK OpenWrt which includes Uboot, Kernel, Driver and Tool Chain |
| Environmental | Temperature: Operating: 32 °F to 122 °F (0 ℃ to 50 ℃), Storage: -40 °F to 194 °F (-40 ℃ to 90 ℃)Humidity (non-condensing): Operating: 5% to 95%, Storage: Max. 95% |
| Case | Material: Iron, Dimensions: 6.1 in x 4.3 in x 1.1 in (155 mm x111 mm x30 mm) |
