Description
Overview

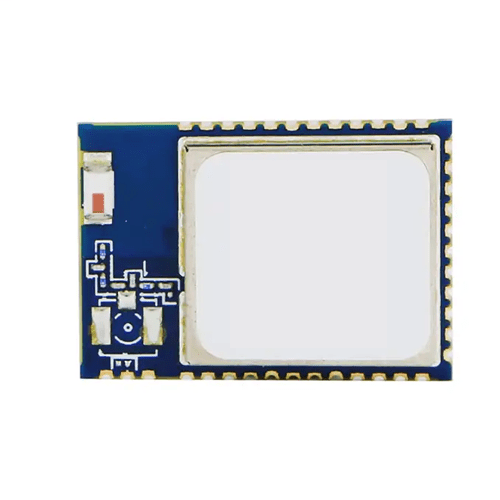

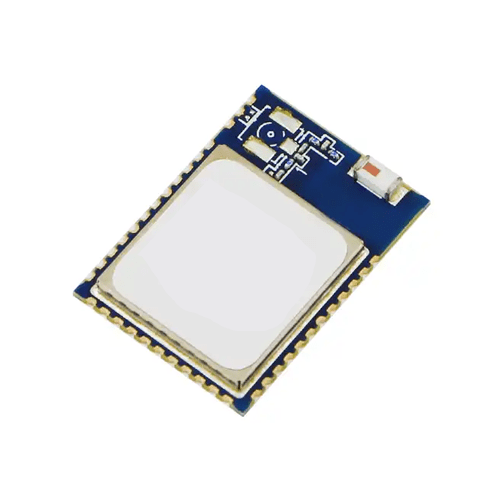

GAOTek Wi-Fi IOT Module is a compact Wi-Fi module (802.11b/g/n) equipped with a powerful ARM Cortex-M4F MCU. Its small form factor, measuring 21mm x 15mm x 2.2mm, makes it suitable for various applications. With versatile interface options including SPI, SDIO, I2S, I2C, UART, PWM, and ADC, it offers flexibility in connectivity. Operating efficiently in a wide temperature range, this module is also designed to perform reliably, with low power consumption, making it a versatile choice for embedded systems.
Features
- Versatile Interface Options
- Temperature Range
- Operating Humidity
- ARM Cortex-M4F MCU
- Flash Memory
Technical Specifications
| Product Description | Wi-Fi 802.11b/g/n + MCU Module |
| Interface | SPI, SDIO, I2S, I2C, UART, PWM, ADC |
| Operating Temperature | -22 °F to 185 °F (-30 °C to 85 °C) |
| Operating Humidity | 10 % to 9 5% |
| MCU | ARM Cortex-M4F |
| SRAM | 384 KB |
| Flash | 4 MB |
| Power Consumption | 0.63 mW
DTIM=1 |
| PCBA Dimension | 0.83 in x 0.59 in x 0.09 in (21 mm x 15 mm x 2.2 mm) |
