Description
Overview

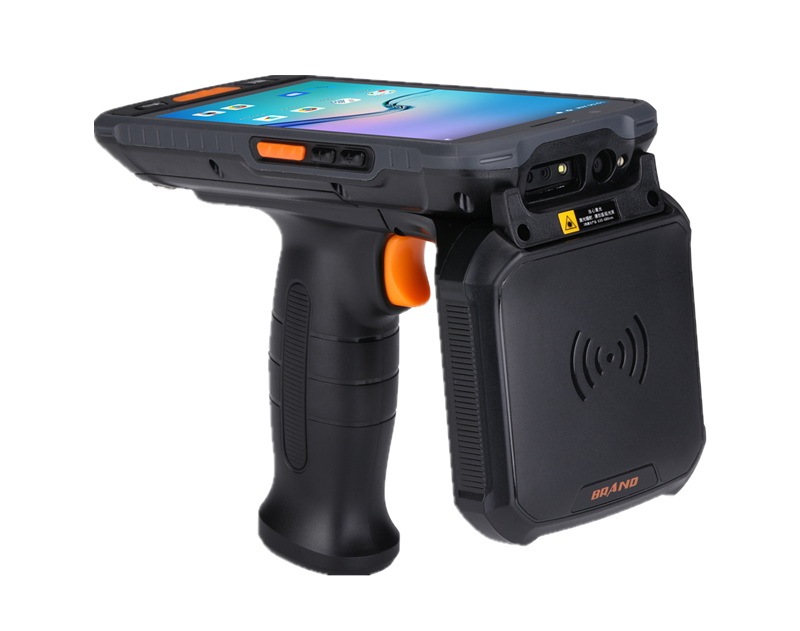

GAORFID SKU#222019 Handheld Enterprise Digital Assistant, Computer or Data Terminal with 1D/2D Barcode Scanner, 4G, WIFI, Bluetooth, GPS, Cortex-A53 Processor and Autofocus Camera is an Android 11.0-based mobile computer which features powerful 8x core processor, stable wireless connectivity (4G LTE, Wi-Fi, Bluetooth), high-resolution camera, accurate GPS, NFC, ISO11784/5 134.2KHz (HDX+FDX) or 125KHz RFID and optional 1D/2D barcode scanning functions. The Handheld Computer also features quick responses to collect data, run multiple application software, and dedicated SC card slot that can accommodate SD cards up to 128 GB memory. It delivers balanced performance with efficient task management and high-speed processing power. This rugged device can be deployed in industries like express delivery, logistics, warehousing, manufacturing and so forth.
Features
- Powered by Cortex-A53 2.0 GHz Octa-core CPU Core.
- Android 11.0 OS based open-development environment
- Support 134.2khz FDX & HDX RFID (Model No. SKU#222019-134)
- Support 125khz RFID (Model No. SKU#222019-125)
Applications
- Logistics and warehousing
- Manufacturing and inventory management
- Field data collection
- Express delivery
- Asset tracking
Technical Specifications
| Basic Configuration | CPU | Cortex-A53 2.0 GHz Octa-core |
| OS | Android 11.0 | |
| Memory | RAM: DDR4 3GB (optional 4GB);
NandFlash: 32GB (optional 64GB) |
|
| Display | 5.5” IPS LTPS 1440 x 720 | |
| Wi-Fi | IEEE802.11 a/b/g/n/ac, 2.4G/5G dual-band, internal
antenna |
|
| Bluetooth | Bluetooth V5.0 | |
| GPS | Built-in | |
| NFC | NXP557, Support ISO/IEC 14443A, ISO/IEC 15693, Mifare. NFC | |
| Mobile Communications | 2G: GSM850/GSM900/DCS1800/PCS1900
3G: WCDMA: B1/B2/B4/B5/B8 CDMA2000 EVDO: BC0 TD-SCDMA: A/F 4G: B1/B3/B5/B7/B8/B20/B34/B38/B39/B40/B41 |
|
| Camera | 13MP autofocus rear camera with flash, 8MP front camera(optional) | |
| Battery capacity | Li-ion, rechargeable, 9000 mAh 5V-2A/9V -2A
Standby: over 500 hours Continuous use: over 12 hours (depending on user environment) Charging time: 3-4 hours (with standard adaptor and USB cable) |
|
| Keypad | 1 power key,3 scan keys,2 volume keys,1 PTT key,1 menu key,1 return key | |
| Indicator | Power Indicator, etc. | |
| Sensor | Light sensor, proximity sensor, gravity sensor | |
| Mechanical Spec | Dimension | 170.2 x 78.0 x 23.3 mm |
| Net Weight | 585 g (including battery) | |
| Drop Specification | Multiple 1.5 m / 4.9 ft. drops (at least 20 times) to the concrete across the operating temperature range | |
| Tumble
Specification |
1000 x 0.5 m / 1.64 ft. falls at room temperature | |
| Sealing | P67 per IEC sealing specifications | |
| ESD | ±15 KV air discharge, ±6 KV conductive discharge | |
| Operating Environment | Operating Temperature | -25°C~+55°C |
| Storage Temperature | -40°C~+70°C | |
| Environment Humidity | 5%RH ~ 95%RH (no condensation) | |
| RFID / Barcode Capability | NFC (Built-in) | 13.56MHz NXP557, Support ISO/IEC 14443A, ISO/IEC 15693, Mifare |
| 1D/2D Barcode Reader | Zebra: SE4710;
1D Symbology UPC/EAN, Code128, Code39, Code93, Code11, Interleaved 2 of 5, Discrete 2 of 5, Codabar, MSI, RSS, etc. 2D symbology PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode; Postal Codes: US PostNet, US Planet, UK Postal, Australian |
|
| Optional 134.2KHz LF RFID | HDX + FDX, ISO11784/5, NFC – SKU#222019-134 | |
| Optional 125KHz LF RFID | SKU#222019-125, NFC | |
