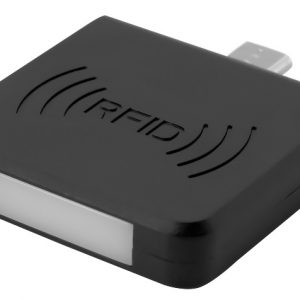

860-960 MHz UHF USB+RS232+Wiegand Desktop/Wall Mounted RFID Reader

High performance UHF RFID module and antenna integrated inside with outstanding performance

Description

Features

  • High performance UHF RFID module and antenna integrated inside with outstanding performance
  • USB charge or independent 9V power supply supported, providing more convenient user experience
  • USB 2.0/ RS-232/ Wiegand 26/ Wiegand 34 supported and integrated all together, catering to all kinds of needs for data transfer
  • Operates at 860 MHz – 960 MHz frequency ranges
  • RSSI Supported
  • Input voltage of DC 3.5V – 5V/9V
  • High output power precision and receive sensitivity
  • High efficient air cooling



PIN Assignments

PIN Interface Description
1 +9V External 9V power supply

(Don’t connect an external power supply and USB power supply both)

2 GND Common ground with +9V external power
3 RS-232 TXD RS-232 data output
4 RS-232 RXD RS-232 data input
5 GND Common ground with RS-232 interface
6 GPIO3 GPIO3 or Wiegand Data 0
7 GPIO4 GPIO4 or Wiegand Data 1
8 GND Common ground with Wiegand data



Applications

  • Small integrated reader ideal for identifying tags and writing data into tags in short distance
  • Applicable in indoor conditions like warehouses, distribution centers and libraries, etc.



Technical Specifications

Output Power 18-26 dBm
Operating Current 180mA @3.5V (26 dBm Output,770F (250C))

110mA @3.5V (18 dBm Output, 770F (250C))

Air Interface Protocol EPC global UHF Class 1 Gen 2/ ISO 18000-6C
Host Communication USB 2.0, RS-232, Wiegand 26, Wiegand 34
Output Power Flatness ± 0.2dB
Cooling Air cooling
Storage Temperature -40F – 1850F(-200C – 850C)
Supported Regions US, Canada and other regions following U.S.FCC

Europe and other regions following ETSI EN 302 208

Receive Sensitivity < -70dBm
Input Voltage DC 3.5V-5V/9V
Tag RSSI Supported
Baud Rate @ RS-232 connection 115200 bps (default and recommended)

38400 bps

Operating Temperature -40F – 1580F (-200C – 700C)
Output Power Precision ± 1dB
Standby Mode Current <80mA
Operating Humidity <95% at 770F (250C)
Antenna Built-in high performance 2dbi ceramic antenna, Read range is up to 200 cm
Peak Inventory Speed >50 pcs/s
