Description
Overview:

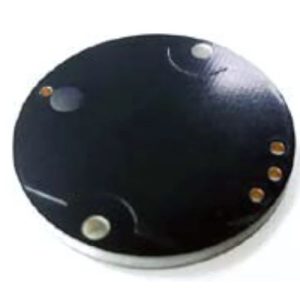

This On-metal tag is constructed with FR-4 materials with IP68 rated, it is highly reliable and durable and suitable for all types of environments including outdoor. waterproof, strong acid, strong base, suitable for small metallic asset tracking.
Technical Specifications:
| Material | FR-4 |
| Color | Black |
| Dimensions | D=20x2mm |
| Weight | 1.5g |
| Working Temp | -20~+85℃ |
| Storage Temp | -40~+150℃ |
| IP Code | IP68 |
| Humidity | 98% non-condensing |
| RFID Standard | ISO/IEC 18000-6 Type C (EPC Gen2) |
| Chip Type | NXP Ucode 8 |
| EPC Memory | 128 bits |
| TID Memory | 96 bits |
| Read Range (2W ERP FCC) | FCC-4.8m, on metal |
| Read Range (Handheld Reader) | FCC-2.0m, on metal |
| Data Storage | > 10 years |
| Re-write | 100,000 times |
| Installation | 3M adhesive |
| Customization | Encoding, Designing, etc. |
| Application | IT asset management, Inventory management, Metallic Asset management, Automotive component tracking, etc. |
