Description

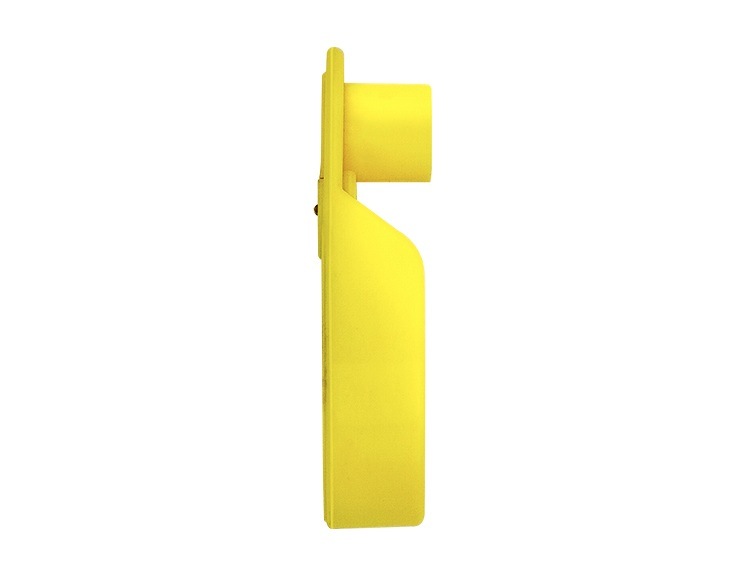

GAORFID SKU#127555 is an anti-removal active ear tag specifically designed for inventory management of enclosed or semi-enclosed livestock. This ear tag uses BLE (Bluetooth Low Energy) communication technology, with a communication range of over 100 meters between the tag and the base station. Once attached to the animal’s ear, it can collect body temperature and activity data (Stepping, Running, and Head shaking), which are then transmitted to a cloud server via a BLE gateway. Weighing only 14 grams, the ear tag can be used on nearly all types of livestock, causes minimal stress, has a low drop-off rate, and is highly suitable for biological asset inventory.
Specifications:
| Communication Method | Low-power BLE (maximum range 200 m to gateway; stable connection within 100 m) |
| Operating Temperature | -30 °C to 60 °C |
| Temperature Measurement Range | 0 °C to 50 °C (accurate to ±0.1 °C between 30 °C and 43 °C) |
| Movement / Activity Detection Method | 3-axis accelerometer (activities such as stepping, running, and head shaking generate activity data) |
| Data Upload Frequency | Once every 20 minutes (adjustable) |
| Waterproof & Dustproof Rating | IP67 |
| Dimensions & Weight | 55 mm × 30 mm × 12 mm; 14 g |
| Temperature Measurement Method | Contact-based |
| Atmospheric Pressure Range: | 86–106 kPa |
