SKU: 116204

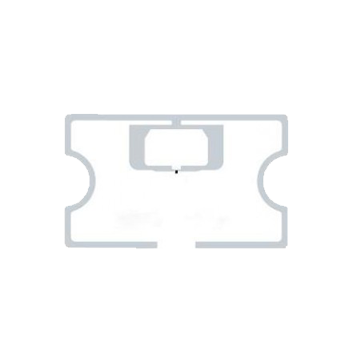

UHF 860-960 MHz Pallet RFID Tag

Product ID: 116204

The UHF pallet RFID tag operates on 860-960 MHz frequency provides long read range of up to 30ft. (10m) and is specially designed for pallet tracking.

Share on

Overview

This Gen 2 UHF RFID pallet tag operates on 860 MHz to 960 MHz frequency. It can be affixed onto pallets and can cover up to a 30 feet (10 meters) read range. These tags are used for multiple applications such as plastic and wooden asset tracking, tree management, factory automation and security purposes. They provide 100,000 cycles of write endurance and has data retention period up to 50 years. Moreover, these can be fixed by adhesive tape for quick attachment or screwed in securely via pre-drilled holes.

Key Features

    • Operates efficiently with read range up to 30 ft. (10 m)
    • Data retention of 50 years
    • Can be attached by screwing into pre-drilled holes
    • Rugged construction

Applications



  • Pallet tracking
  • Wooden and plastic asset tracking
  • Tree management
  • Factory automation
  • Asset security purposes

Technical Specifications

RF Specifications
RF Air Protocols EPC Class1 Gen2; ISO18000-6C
Operating Frequency 860 MHz to 960 MHz
Read Distance Up to 30 ft. (10 m)
IC Type Monza-4D, Monza-4E, Higgs-3
Memory Configuration EPC 96 bits extendable up to 128, User 512 bits
Mechanical Specifications
Material PC, ABS
Dimensions 4.72 in × 0.67 in × 0.12 in (120 mm × 17 mm × 3 mm)
Weight 0.176 oz. (5 g)
Environmental Specifications
Operating Temperature -40 °F to 185 °F (-40 °C to 85 °C)
Data retention Up to 50 years
